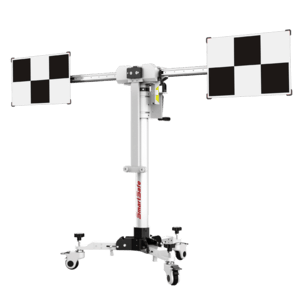

ADAS Mobile

Passenger Vehicle ADAS Calibration Equipment

ADAS MOBILE is a mobile ADAS calibration equipment specially developed by SmartSafe for vehicles. Suitable for calibrating ADAS cameras and radar sensors of multiple brands of vehicles. It can be used in conjunction with ST10, ST08 and other automotive diagnostic tools. The ADAS MOBILE is ideal for repair shops!.

Functions

What Can Be Solved in Your Shop

The base and arms of the ADAS MOBILE can be folded together, and can be placed in the rear trunk of a car. It is a portable ADAS Calibration Equipment that meets the needs of outdoor mobile calibration. It supports a variety of ADAS calibration services, providing more comprehensive solutions for repair shops!.

Functions

Functions	Description
Multi-System Calibration	Supports calibration for six major systems including LDW/ACC/AVM/NVS/BSD/RCW.
Equipment fine-tuning	Supports fine-tuning of front-to-back and left-to-right angles.
Equipment lifting	Supports manual and electric lifting modes, and the laser rangefinder located height.
Multi-Vehicle Model Calibration	Supports ADAS system calibration for over 90 vehicle brands in Europe, Americas, Asia, and China, with over 90 target models
Device Folding	Supports full folding of the beam and base.
Device Fine-Tuning	Supports angle fine-tuning.
Device Elevation	Supports manual elevation adjustment, using a laser rangefinder for height positioning

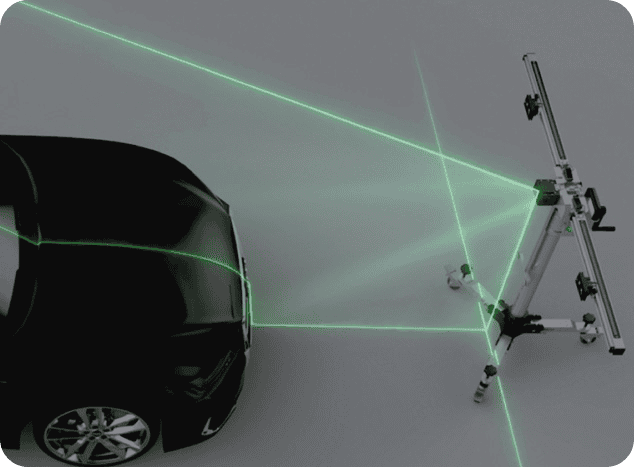

Parallel Alignment	Achieves device parallel alignment using auxiliary accessories like a five-line laser
Level Adjustment	Observe the bubble level, adjust the base knob, and achieve device leveling

Maintenance tips

Make Your Products Last Longer

For every spare part, the calibration tool should also be handled with care.
Keep the calibration tool clean at all times.
Do not immerse the calibration tool in water or other fluids.
Maintain the calibration tool in dry conditions and operate them within normal operating temperatures.
Do not store the calibration tool in humid or dirty areas.
Regularly lubricate moving parts with acid-free and resin-free grease or oil.
Clean the ADAS calibration tool with non-aggressive cleaning agents on a regular basis.
Use commercial household cleaning detergents and a moistened, soft cleaning cloth.
Always use original spare parts to replace damaged accessories immediately.
